Faggiolati Submersible Mixers

Thanks to their versatility, Faggiolati’s mixers can be used in a wide range of applications. The combination of various construction materials, the stainless steel propellers and double silicon carbide mechanical seals allow the use of these mixers in highly corrosive conditions and at high temperatures. Typical applications for these types of mixer are: – homogenisation of heavy sludge or liquids with solid particles – Removal of sedymentary deposits. – to avoid ice formation.

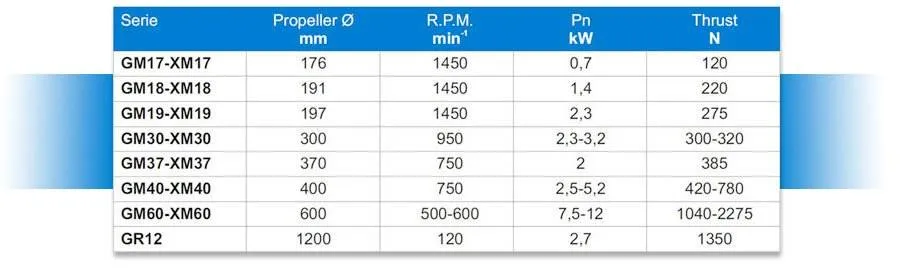

CONSTRUCTION DATA

Submersible mixers, rugged in construction, watertight electric motors accomodated in compartment, connected, by shafts of reduced lenghts, to the impellers situated by the interposition of oil chamber between the hydraulic side and the electric motor.Asynchronous, three-phase electric motors, squirrel cage type, IP 68 protection, class H insulation. They are designed for S1 (continous) service, with a max overloading up to 10% environmental cooling at temperature 40oC. Starts par hour up to 15. Motors cooling comes through thermic exchange with surrounding fluid.

MATERIALS

Serie GM:

motor housing Cast iron EN-GJL-250; propeller Stainless steel AISI 316; electric cable Neoprene H07RN/F; shaft Stainless steel AISI 420; o-rings Nitrile; bolts A2 class; mechanical seal Silicon Carbide/Silicon Carbide.

Serie XM:

motor housing Stainless steel AISI 316; propeller Stainless steel AISI 316; electric cable Neoprene H07RN/F; shaft Stainless steel AISI 316L; o-rings Viton; bolts A4 class; mechanical seal Silicon Carbide / Carbide /Viton.

Installations

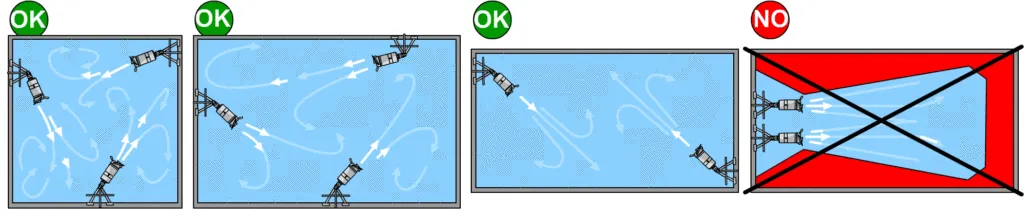

AVOID FLOWS CROSSING OR INTERSECTION

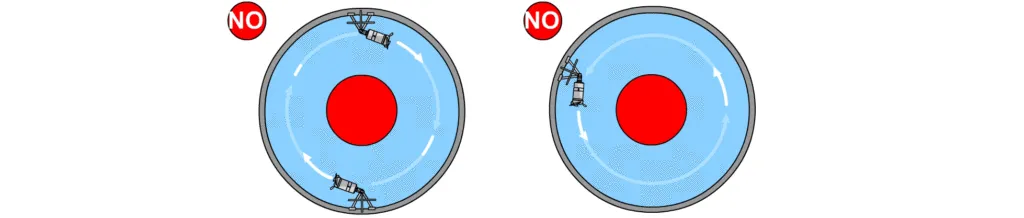

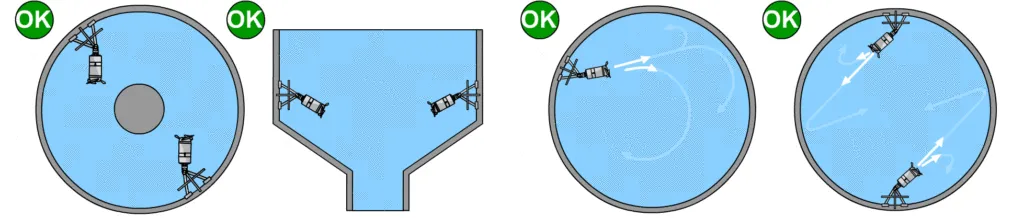

TRY TO TAKE ADVANTAGE FROM WALLS EBBS

KEEP INTO CONSIDERATION INFLOWS AND OUTFLOWS

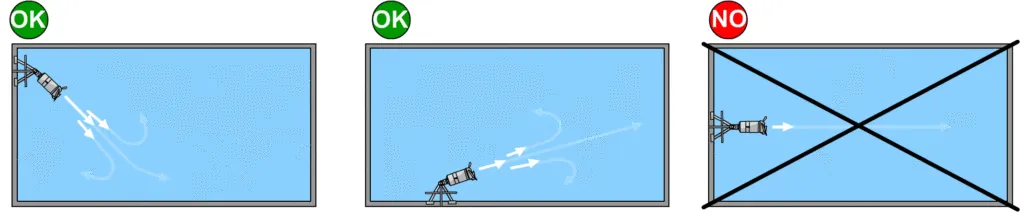

IN ABSENCE OF SHORTCIRCUIT FLOW, YOU HAVE SUFFICIENT SPEED AT THE BOTTOM OF THE TANK, SO THAT IN THE MIDDLE

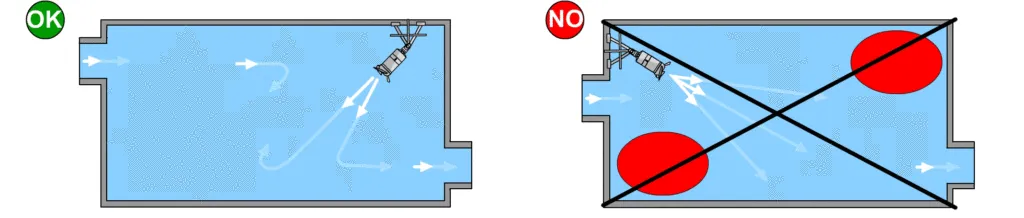

AVOID SHORTCIRCUIT FLOWS

MIXER/SUBMERSIBLE PUMP
