Grindex Dewatering Pump: Matador

Electrical submersible 3~ drainage pump

The Matador pump is a versatile drainage pump that shares all important features and benefits with the other models, resulting in the lowest cost per cubic meter pumped. The drainage range of pumps drain water, not your wallet! The revolutionary hydraulic design ensures high wear resistance and dramatically reduces performance drop due to long time wear.

Available in both 50hz and 60hz models.

Grindex-Matador
Technical DataNH
Discharge connection6”4”
Rated output18 kW18 kW
Max power consumption20 kW20 kW
Rated current at 400 V33 A33 A
Rated current at 500 V26 A26 A
Shaft speed2905 RPM2905 RPM
Strainer holes∅ 12 mm∅ 12 mm
Weight133 kg133 kg
Height954 mm954 mm
Width∅ 395 mm∅ 395 mm

Upper Mechanical Seal:
Tungsten carbide - Tungsten carbide
Lower Mechanical Seal:
Silicon carbide
Outer Casing:
Stainless steel
Strator Housing:
Aluminium
Motor Shaft:
Stainless steel
Impeller:
Hard-IronTM
Suction Cover:
Hard-IronTM
Lower Diffuser:
Nitrile Rubber
Float Switch:
Together with external starter
Zinc Anodes:
On request
Other Castings:
Aluminium
Pump Raft:
On request
Screws & Nuts:
Stainless steel
Diffuser Ring:
Nitrile Rubber
O-Rings:
Nitrile rubber
Max. Liquid Density:
1100 kg/m3
Max. Liquid Temperature:
40°C
pH of Liquid:
5-8
Max Submersible Depth:
20m
Tandem Connection:
On request

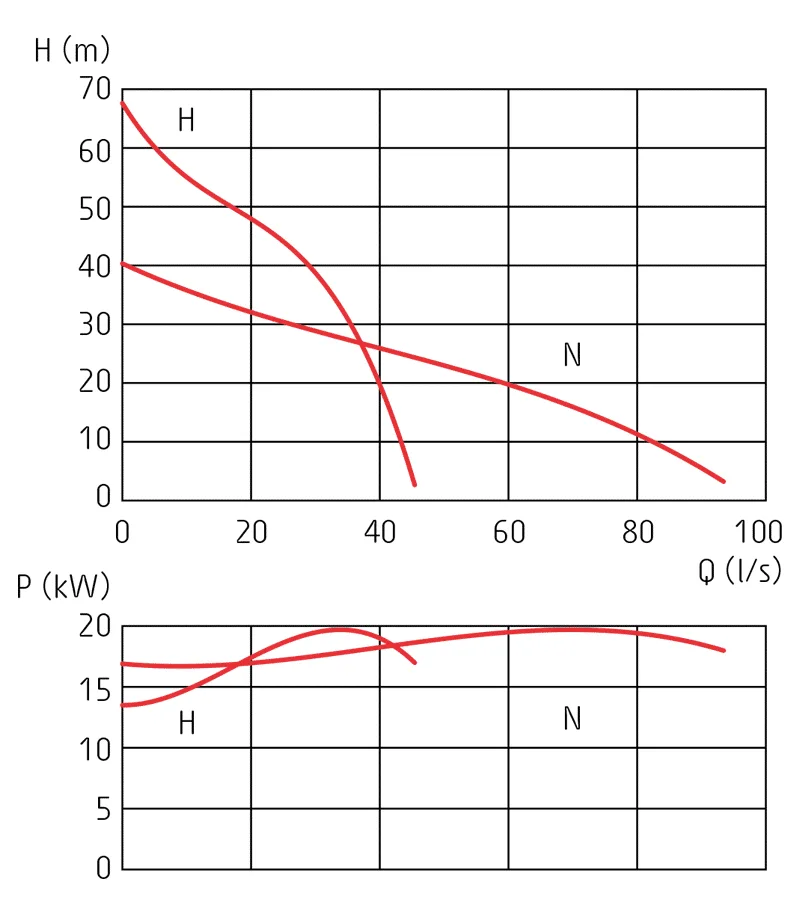

Download: Curve
gx_brochure_drainagesludge_en_50hz-THUMBNAIL
Product Brochure
IOM Manual
Upper Mechanical Seal:
Tungsten carbide - Tungsten carbide
Lower Mechanical Seal:
Silicon carbide
Outer Casing:
Stainless steel
Strator Housing:
Aluminium
Motor Shaft:
Stainless steel
Impeller:
Hard-IronTM
Suction Cover:
Hard-IronTM
Lower Diffuser:
Nitrile Rubber
Diffuser Ring:
Nitrile Rubber
Screws & Nuts:
Stainless steel
O-Rings:
Nitrile rubber
Other Castings:
Aluminium
Zinc Anodes:
On request
Float Switch:
Together with external starter
Tandem Connection:
On request
Pump Raft:
On request
Max Submersible Depth:
20m
pH of Liquid:
5-8
Max. Liquid Temperature:
40°C
Max. Liquid Density:
1100 kg/m3
