Grindex Dewatering Pump: Minette

Electrical submersible 1~ & 3~ drainage pump

The Minette pump is the next smallest model in the drainage range, but it shares all important features and benefits with the larger models, resulting in the lowest cost per cubic metre pumped.

The drainage range of pumps drain water, not your wallet!

The revolutionary hydraulic design ensures high wear resistance and dramatically reduces performance drop due to long time wear.

Available in both 50hz and 60hz models.

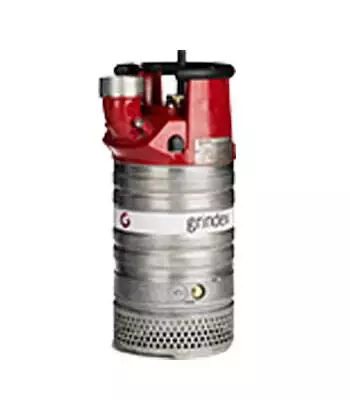

Grindex-Minette
Upper Mechanical Seal:
Tungsten carbide - Aluminium oxide
Lower Mechanical Seal:
Silicon carbide
Outer Casing:
Stainless steel
Strator Housing:
Aluminium
Motor Shaft:
Stainless steel
Impeller:
Hard-IronTM
Suction Cover:
Hard-IronTM: 3~
Lower Diffuser:
Nitrile rubber: ~1
Low Suction Collar:
On request
Float Switch:
On request
Zinc Anodes:
On request
Other Castings:
Aluminium
Pump Raft:
On request
Screws & Nuts:
Stainless steel
Diffuser Ring:
Nitrile rubber
O-Rings:
Nitrile rubber
Max. Liquid Density:
1100 kg/m3
Max. Liquid Temperature:
40°C
pH of Liquid:
5-8
Max Submersible Depth:
20m

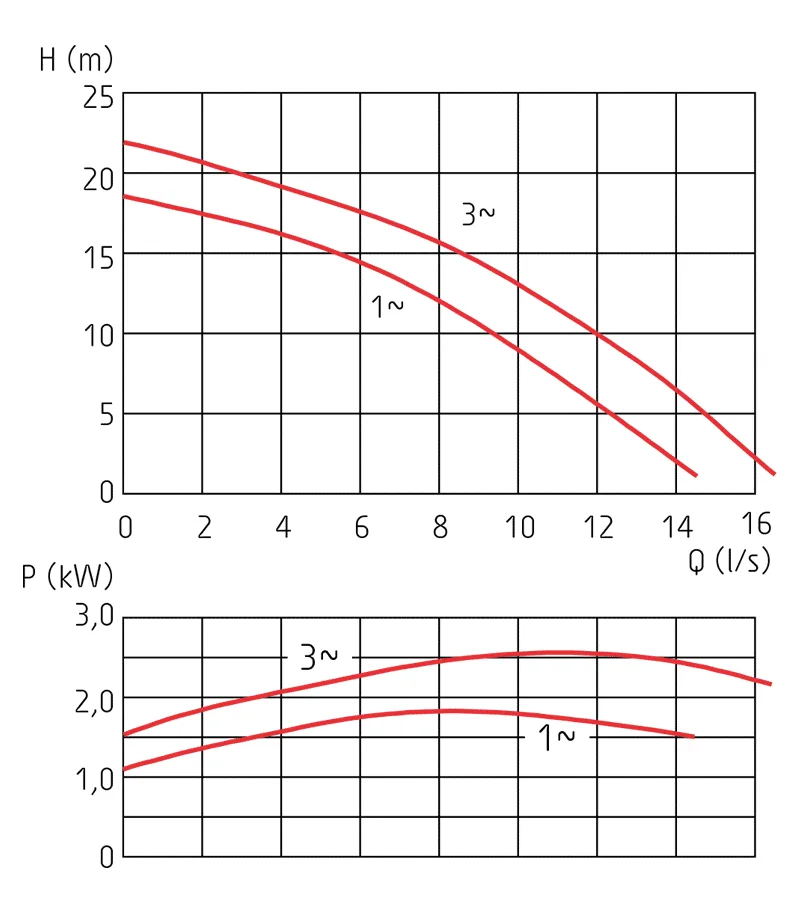

Download: Curve
gx_brochure_drainagesludge_en_50hz-THUMBNAIL
Product Brochure
IOM Manual
Upper Mechanical Seal:
Tungsten carbide - Aluminium oxide
Lower Mechanical Seal:
Silicon carbide
Outer Casing:
Stainless steel
Strator Housing:
Aluminium
Motor Shaft:
Stainless steel
Impeller:
Hard-IronTM
Suction Cover:
Hard-IronTM: 3~
Lower Diffuser:
Nitrile rubber: ~1
Diffuser Ring:
Nitrile rubber
Screws & Nuts:
Stainless steel
O-Rings:
Nitrile rubber
Other Castings:
Aluminium
Zinc Anodes:
On request
Float Switch:
On request
Low Suction Collar:
On request
Pump Raft:
On request
Max Submersible Depth:
20m
pH of Liquid:
5-8
Max. Liquid Temperature:
40°C
Max. Liquid Density:
1100 kg/m3
